Brand Name : SHUXIN
Model Number : SX-1 Gabion Box
Certification : CE, SGS
Place of Origin : Hebei, China
MOQ : 1000 square meter
Price : USD1.33
Payment Terms : T/T, Western Union, D/A, D/P, L/C, MoneyGram
Supply Ability : 10000 square meter per month
Delivery Time : 5-8 working days
Packaging Details : Packing with tape
Name : Gabion box
Wire Diameter : 2.7, 3.0, 3.4,3.9 mm
Hole size : 6x8cm, 8*10cm ,10x12cm
Surface treatment : PVC Coated, Hot Dipped Galvanized
Application : Construction Wire Mesh,Cages,Protecting Mesh
certification : CE,ISO ,SGS
8X10CM Hexagonal Hole Galvanized Anticorrosive Gabion Box Woven Stone Filled Gabion Basket Preventing Rock Breaking
Product Description
Gabion box shall be assembled individually and placed on the surface to the lines, with the position of all creases and that the tops of all sides are boxes shall be properly staggered horizontally and vertically according to the construction requirement
Specification
Gabion box (mesh size): 80*100mm 100*120mm | Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 | |
Gabion mattress (mesh size): 60*80mm | Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
special sizes Gabion are available
| Mesh wire diameter | 2.0~4.0mm | superior quality,competitive price and considerate service |
Edge wire diameter | 2.7~4.0mm | ||
Tie wire diameter | 2.0~2.2mm |
Material | galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire |
Application | can be widely used in flood controlling,retaining wall,river bank protection, slope protection . |
Hole shape | Hexagonal |
Advantages
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
![]() |

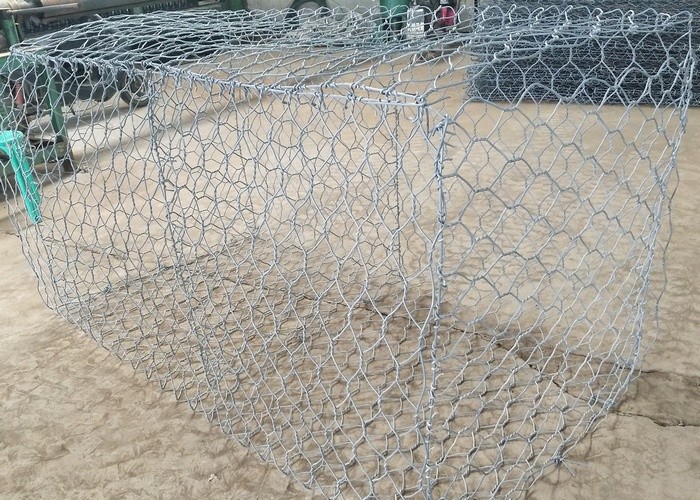

8x10cm Gabion Box Hexagonal Hole Galvanized Anticorrosive Images |
